Basic Information Edit
The Inverter Gate is a logic gate that can be wired in between an activation device and an activatable wireable object.
An Inverter Gate is a receiver and also a sender that sends an inverted signal, since it reverts the signal that it receives from a sender to its opposite.
"Inverter gates can receive either a "true" or "false" event and will then output an inverted boolean value."
This means: if the Inverter Gate receives a "true" (= activation) signal from an activation device like from a Switch, Sensor, Pressure Plate etc., it will send a "false" (= deactivation) signal to the receiver (usually a door, lamp, fan, beacon, mob spawner, loot spawner, block phaser...), or to another logic gate. If it receives a "false" signal, it will send out a "true" signal.
For example, the Inverter Gate can let a door stay open as long as no activation device is being activated, but if players (or Creatures) activate a Switch, Sensor, Pressure Plate or the like, the door will close - it will be deactivated instead of being activated by the signal that an activation device sends out when it is activated itself.
How to obtain Edit
Inverter Gates can be crafted in your Crafting Menu, but only after their crafting recipe has been unlocked for free in your Crafting Menu (that can be opened by typing "q" as the default key).
These gates cannot be obtained from any Creatures or randomly spawning Treasure Chests. They can be bought as part of building kits for customizable Blueprints for Coins (that can be bought with real money).
Unlocking the crafting recipe Edit
To unlock the crafting recipe for free in your Crafting Menu (to be opened by "q" as the default key), you'll need to craft or obtain:
How to craft Edit

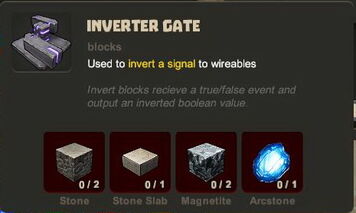

To craft 8 Inverter Gates at a time in your Crafting Menu, you'll need:
- 2 blocks of Stone mined from the Fossil layer underground close to the surface, accessible through many Caves, or from Mountains. Mining Stone does not require any Power Cells to be equipped
- 1 Stone Slab made of Stone, Limestone or Bedrock in a Processor
- 2 blocks of Magnetite mined from the Fossil layer underground (acessible through Caves) or obtained by killing or pet-harvesting Night Rocksters, Warmworms or Rockzillas
- 1 Arcstone obtainable from Keepas of any kind either as loot or pet-harvest
How to use Edit
To use an Inverter Gate, it must be placed into the game world and wired to both one or more activation devices and one or more receiving activatable objects like doors, wicket gates, trap doors, lamps, beacons or machines.
You can fully rotate Inverter Gates into all directions by pointing your cursor at them, then pressing and holding R (as the default key) and then moving the mouse while holding down the left mouse button. The chosen rotation angle can be "locked" too by simply typing "r" while looking at an already rotated item, so that all items of the same stack in the chosen quickslot will then face the same direction when being placed.
Inverter Gates can be picked up without the need to equip any Power Cells if you match or outrank the permission level of the gate that has been defined by its owner. Of course you won't be able to pick up such objects on game worlds, on player claims or in Adventures where your Permission rank is not sufficient (mainly when you are merely a visitor), which can only be changed by the owner of the game world, the respective claim owner or Adventure creator.
You'll have to equip and use an Wiring Tool to connect the Inverter Gate to one sender (usually an activation device like a Switch, Pressure Plate, Sensor, etc.) and one receiver (usually a door, block phaser, fan, beacon, mob spawner, loot spawner, lamp, etc.), so that the Inverter Gate can send out an inverted signal and either activate (with a "true" signal) or deactivate ("false") the receiver. Activated receivers will be switched on, doors will open, etc.
- an Inverter Gate is an input-output-machine
- the "input" signal will be reversed, so the "output" signal will be the opposite of the "input" signal. A "true" ("activate") signal that's received will be changed into a "false" ("deactivate") signal that will be sent, and a "false" ("deactivate") signal will be changed into a "true" ("activate") signal
If an Wiring Tool is equipped and you point your cursor at an Inverter Gate, the gate will display both a send and a receive Connector overlay-image.
The Inverter Gate can be configured with the Wiring Tool too. With the Wiring Tool equipped, point at the Inverter Gate in the game world and press the key "n" (default key) to see the inspection window.
- the Inverter Gate can be renamed (30 characters)
- its access can be restricted: click on this icon to change the permission settings so other players (with a specific permission rank) aside from you can use or even take the machine, if you should wish to enable them to do so
- the direct interactivity can be permitted/prohibited
(by disabling the button next to the option "Can Interact", the gate will be locked and can then only be activated/deactivated by the activation devices that it is wired up to, even by the gate's owner)
- you can write code words into the arrays for "sends" and "receives" and then use these same code word(s) in the correlating arrays of the activation devices and/or the objects that you want to activate/deactivate
How to wire Inverter GatesEdit
|Inverter Gates can be wired to activation devices like Switches, Sensors, Number Pads or Pressure Plates etc. and to activatable wireable objects like doors, wicket gates, lamps, beacons, fans, block phasers, mob spawners, loot spawners, LEDs, campfires, fire pits, trap doors, corrupt obelisks, snow blowers, chimneys, etc.|
To wire Inverter Gates, equip an Wiring Tool and point your cursor at the Inverter Gates that you have placed into the world. Their "Receive" Connector will become visible then and you will be able to connect them to the "Send" Connector of activation devices and/or of other logic gates. Also connect their "Send" Connector to a receiver.
Type "n" (as the default key) to inspect the wiring window of the Inverter Gates if you wish to type a code word into the receiving array that you should then also use in the sending array of the activation device/s to connect them. You can do the same thing with the sending array of the Inverter Gates and the receiving array of the receiving objects that you want to activate/deactivate.
How to change the settings of Inverter GatesEdit
The interactivity of Inverter Gates can be toggled as well. Wireable objects like Inverter Gates can be activated/deactivated by players of all permission ranks, even by visitors, unless their interactivity is disabled for all players with an Wiring Tool.
For this purpose you can lock your Inverter Gates by disabling the option "can interact". You can access this option when looking at the Inverter Gates with an Wiring Tool equipped and typing "n" (as the default key) to open the inspection window.
When disabling the option "can interact", other players cannot switch your Inverter Gates on or off, but only if their permission rank is lower than the minimum permission level of the according Inverter Gates. If players are either builders or even admins on your player claim or on the game world (if the Inverter Gates are not placed on any claimed land), then these players might not only activate/deactivate your Inverter Gates, but even pick them up and take them away.
The padlock symbol lets you define the minimum permission rank for your Inverter Gates that players will need to match or outrank in order to be able to see and change the settings of Inverter Gates with their own Wiring Tool. Equip an Wiring Tool and type "n" (as the default key) to open the wiring window of the Inverter Gates. Look for the padlock symbol in the top right corner of the settings window.
Click on this padlock icon to check the permission setting that is currently selected. The permission level of these lInverter Gates will be set to "world builders" by default when placing the Inverter Gates, and on player claims the permission will automatically be set to "claim builders" when the Inverter Gates are placed.
When raising the permission level of Inverter Gates with the padlock symbol, only their owner as well as players with a matching or even higher permission rank than the permission level of these Inverter Gates can use their Wiring Tool to change the settings (including "can interact") of the Inverter Gates, so that they can switch the Inverter Gates on/off directly, or even take them.
